Product description

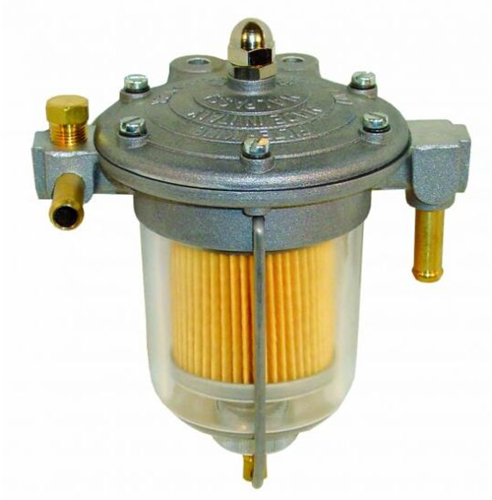

Malpassi FILTER KING fuel pressure regulator has been designed to IMPROVE CARBURETTOR FEEDING SYSTEM. Fuel flow is steady and constant at any weather, ambient and driving conditions, thanks to its wide and sensible diaphragm inside.
A standard fuel pump can delivery a fuel pressure 5 times higher than the useful to feed carburettor, with overload, stalling or starvation of engine and waste of fuel. Malpassi FILTER KING avoids these problems reducing and regulating the fuel pressure, with a perfect idle, immediate and fast start of engine. The vehicle will run smoother without loss of performances at high rpm, as the pressure to carburettor will be set for the max engine power, plus additional safety percentage, according to the size of the needle valve.
Malpassi FILTER KING is manufactured with the best materials, by accurate machining and quality controls. This pressure regulator is supplied as standard with hose tails for fuel hoses with an internal diameter of 8 mm.
Technical Specifications:
- Diameter 85 mm
- For applications with carburetted aspirated engines
- Compatible with alcoholed fuel (E85)
- 1 x IN connector, 8 mm tail
- 1 x OUT connector, 8 mm tail
- Paper filter element
- Glass bowl
- Supplied with bracket and bolts for easy fitting
- For carburettor applications only
- Not suitable for high pressure injection pumps/system
Dimensions and Technical Specifications:
- Height: 1300mm
- Width: 116mm
- Weight: 370 gms
- Filter Micron: 10
- Unions: 8mm
- Pressure Range: 1.5-7 psi
